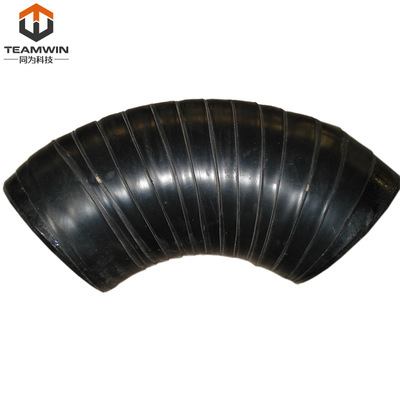

• Easy Installation:The flexibility allows to effectively protect circular pipe,elbows and risers.
• Saves Time & Money: No special priming or operator equipment is required, product installation is quick and labour costs are kept to a minimum.
• Long Term Protection: It is manufactured using materials that provide high electrical resistivity, low water absorption and low moisture permeability.
Application:
Operating Characteristics | WT50（mastic） | WT 60 | WT 80 | |
Pipeline Operating Temp | 60℃ | 70℃ | 85℃ | |
Minimum Installation Temp | 60℃ | 75℃ | 85℃ | |
Mainline Coating Compatibility | PE,FBE,PP | PE,FBE,PP | PE,FBE,PP | |
Adhesive Properties | Test Method | Typical Values | ||
Softening Point | GB/T4507-85 | 78℃ | 113℃ | 120℃ |
Lap Shear @ 23°C | ASTM D1002-05 | 0.8 | 0.8 | 1 |
Backing Properties | ||||
Tensile Strength | ASTM D638 | 21MPa | 24MPa | 24MPa |
Elongation at Broken | ASTM D638 | 550% | 550% | 550% |
Hardness | ASTM D2240 | 46 Shore D | 46 Shore D | 46 Shore D |
Abrasion Resistance | ASTM D1044 | 45mg | 45mg | 46mg |
Specific Gravity | ASTM D792 | 0.93 | 0.93 | 0.94 |
Tape Properties | ||||
Impact | ASTM G14 | Pass | Pass | Pass |
Cathodic Disbondment | ASTM G8 | 13 | 8 | 8 |
Peel | ASTM D1000 | 90 N/cm | 160 N/cm | 140 N/cm |
Water Absorption | ASTM D570 | 0.001% | 0.001% | 0.001% |
Dielectric Voltage | ASTM D149 | 35MV/m | 35MV/m | 35MV/m |
Low Temp. Flexibility | ASTM D2671C | < -30℃ | < -30℃ | < -30℃ |
