Products are widely used in electric power, communications, military industry, metallurgy, coal mining, petrochemical and other fields.

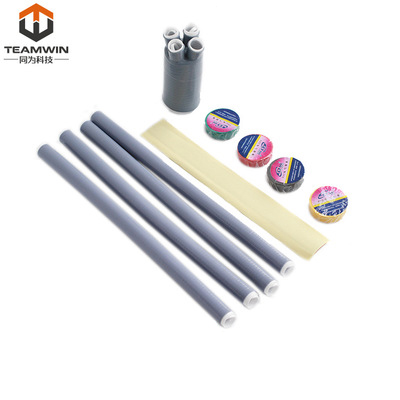

The 0.6-1kv cold-shrinkable cable accessories are divided into single core, two cores, three cores, four cores and five cores, which are used for the terminal and middle processing of the 0.6-1kv cable.
The 0.6-1kv cold shrinkable cable terminal and the 0.6-1kv cold shrinkable cable middle are collectively referred to as the 0.6-1kv cold shrinkable cable accessory.
• There is no need for fire and special tools, and no trouble of gradual insertion. As long as the core rope is gently extracted, it will rely on its own elasticity to retract, so as to cling to the cable. Each specification can be applied to multiple cables It has good compatibility with cable diameter.
• Using liquid silicone rubber, it has excellent insulation and high elasticity. After installation, it maintains a constant radial pressure on the cable body, which has low partial discharge and "breathes" with the cable body.
• Simple installation, low technical dependence on operation and easy to master. During cable pretreatment, the stripping distance is short and the installation space is small. The grounding method uses a constant force spring to fix the ground wire, without welding or copper binding, which is convenient, fast and reliable.
• Anti-fouling, aging resistance, good hydrophobicity, excellent corrosion resistance, cold resistance and UV resistance, and stable long-term performance. It is suitable for high altitude areas, cold areas, humid areas, salt fog areas and heavily polluted areas.
Specification of terminal:
| Product name | Models | Applicable cable section (mm2) |
| 1kv four-corecoldshrinkableterminal | TW-CTLSY-1/4.1 | 25-50 |
| TW-CTLSY-1/4.2 | 70-120 | |
| TW-CTLSY-1/4.3 | 150-240 | |
| TW-CTLSY-1/4.4 | 300-400 | |
| 1kvfive-corecoldshrinkableterminal | TW-CTLSY-1/5.1 | 25-50 |
| TW-CTLSY-1/5.2 | 70-120 | |
| TW-CTLSY-1/5.3 | 150-240 | |
| TW-CTLSY-1/5.4 | 300-400 |
Specification of splices:
| Product name | Models | Applicable cable section (mm2) |
| 1kv four-core cold shrinkable splices | TW-JLSY-1/4.1 | 25-50 |
| TW-JLSY-1/4.2 | 70-120 | |
| TW-JLSY-1/4.3 | 150-240 | |
| TW-JLSY-1/4.4 | 300-400 | |
| 1kv five-core cold shrinkable splices | TW-JLSY-1/5.1 | 25-50 |
| TW-JLSY-1/5.2 | 70-120 | |
| TW-JLSY-1/5.3 | 150-240 | |
| TW-JLSY-1/5.4 | 300-400 |
