1kv four-core heat shrinkable terminal, one of different numbers of cores for low pressure heat shrinkable terminal.

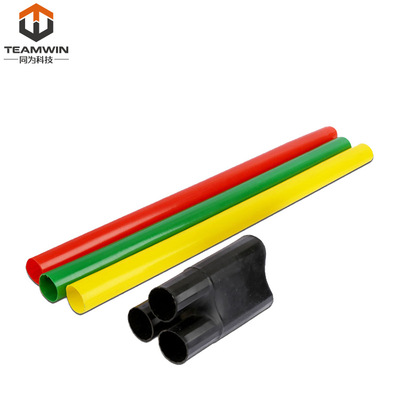

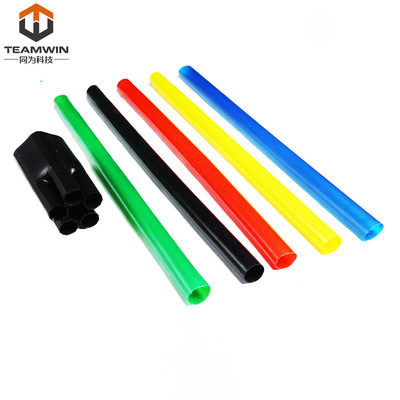

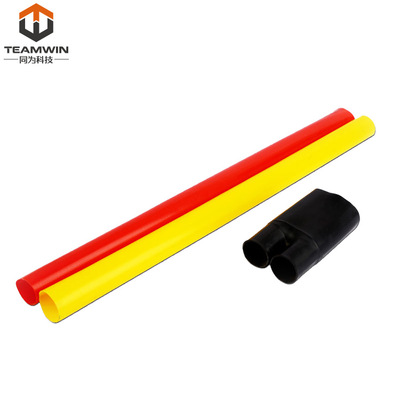

The 1kv four-core heat shrinkable terminal is packaged and sold in units of sleeves. The complete set of products includes four-color insulated tubes of red, green, yellow and black and heat shrinkable finger sleeves. The heat shrinkable terminals can be divided into two to five cores. This needs to be selected according to the number of cores of the cable. At the same time, the number of branches of the heat shrinkable finger sleeve corresponds to the number of cores of the cable.• Shrinking temperature: 125℃;
• Product use temperature after shrinkage: -40℃～60℃;
• Withstand voltage rating: 1kV;
• Product packaging: 1 set/bag;
• Product color: the color of the tube is red, yellow, green, black, blue (except for the five cores, customers can match it by themselves), finger cot black
Specification of terminal:
Items | Test item | Standard requirement | Test result | Conclusion |
1kv terminal and splices | 1min Power frequency voltage withstand test | 4kv, no flash, no breakdown | 4kv/min,no flash, no breakdown | Qualified |
Load circulation test (3 circulations) | 5h heated, 3h cooled, the temperature of conductor is 75℃ while heating. | See below | Qualified | |
4h Power frequency voltage withstand test | 2.4kv, no flash, no breakdown | 2.4kv/4h, no flash, no breakdown | Qualified |
Specification of splices:
Product name | Models | Applicable cable section (mm2) |
1kv one-core splices | TW-TLSY-1/1.0 | 10-16 |
TW-TLSY-1/1.1 | 25-50 | |
TW-TLSY-1/1.2 | 70-120 | |
TW-TLSY-1/1.3 | 150-240 | |
1kv two-core splices | TW-TLSY-1/2.0 | 10-16 |
TW-TLSY-1/2.1 | 25-50 | |
TW-TLSY-1/2.2 | 70-120 | |
TW-TLSY-1/2.3 | 150-240 | |
1kv three-core splices | TW-TLSY-1/3.0 | 10-16 |
TW-TLSY-1/3.1 | 25-50 | |
TW-TLSY-1/3.2 | 70-120 | |
TW-TLSY-1/3.3 | 150-240 | |
1kv four-core splices | TW-TLSY-1/4.0 | 10-16 |
TW-TLSY-1/4.1 | 25-50 | |
TW-TLSY-1/4.2 | 70-120 | |
TW-TLSY-1/4.3 | 150-240 | |
1kv five-core splices | TW-TLSY-1/5.0 | 10-16 |
TW-TLSY-1/5.1 | 25-50 | |
TW-TLSY-1/5.2 | 70-120 | |
TW-TLSY-1/5.3 | 150-240 | |
* Customized dimensions are available on request | ||
