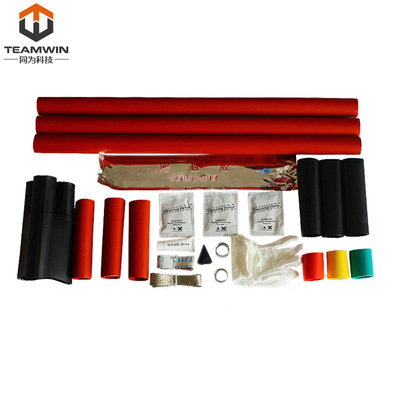

• Shrinking temperature: 105℃;
• Temperature range: -55℃～125℃;
• Withstand voltage rating: 10KV;
• Product packaging: 1 set/bag;
• Product color: red, yellow, green;
Specification of terminal:
Items | Test item | Standard requirement | Test result | Conclusion |
5kv outdoor/indoor terminal and splices | Power frequency voltage withstand test | 45kv/min, no flash, no breakdown | 45kv/min, no flash, no breakdown | Qualified |
Partial discharge test | 13kv,≤20pc | 13kv, 2pc | Qualified | |
Load circulation test (3 circulations) | 5h heated, 3h cooled, the temperature of conductor is 95℃ while heating | See below | Qualified | |
| Partial discharge test | 13kv,≤20pc | 13kv, 2pc | Qualified | |
Impulse voltage test | 105kv，commit 10 times respectively on positive and negative pole. | 105kv, no flash, no breakdown. | Qualified | |
Negative pole direct voltage test | 52kv/15min， no flash, no breakdown | 52kv/15min, no flash, no breakdown | Qualified | |
4hPower frequency voltage test | 35kv/4h, no flash, no breakdown | 35kv/4h, no flash, no breakdown | Qualified |
Specification of splices:
Product name | Models | Applicable cable section (mm2) |
5kv outdoor/indoor terminal and splices | TW-TLSY-10/3.1 | 25-50 |
TW-TLSY-10/3.2 | 70-120 | |
TW-TLSY-10/3.3 | 150-240 | |
TW-TLSY-10/3.4 | 300-400 | |
10kv three-core outdoor terminal | TW-TLSY-10/3.1 | 25-50 |
TW-TLSY-10/3.2 | 70-120 | |
TW-TLSY-10/3.3 | 150-240 | |
TW-TLSY-10/3.4 | 300-400 | |
10kv three-core splices | TW-TLSY-10/3.1 | 25-50 |
TW-TLSY-10/3.2 | 70-120 | |
TW-TLSY-10/3.3 | 150-240 | |
TW-TLSY-10/3.4 | 300-400 | |
10kv three-core indoor terminal for oiled cable | TW-TLSZ-10/3.1 | 25-50 |
TW-TLSZ-10/3.2 | 70-120 | |
TW-TLSZ-10/3.3 | 150-240 | |
TW-TLSZ-10/3.4 | 300-400 | |
10kv three-core outdoor terminal for oiled cable | TW-TLSZ-10/3.1 | 25-50 |
TW-TLSZ-10/3.2 | 70-120 | |
TW-TLSZ10/3.3 | 150-240 | |
TW-TLSZ-10/3.4 | 300-400 | |
10kv three-core splices for oiled cable | TW-TLSZ-10/3.1 | 25-50 |
TW-TLSZ-10/3.2 | 70-120 | |
TW-TLSZ-10/3.3 | 150-240 | |
TW-TLSZ-10/3.4 | 300-400 |
