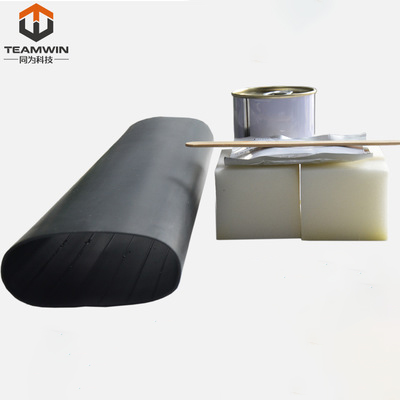

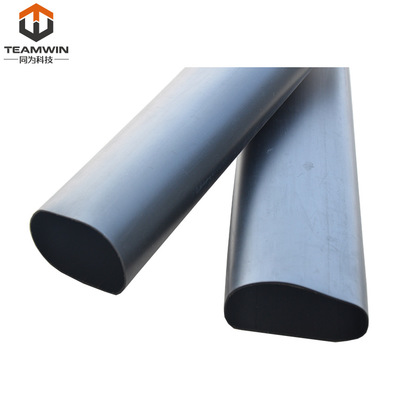

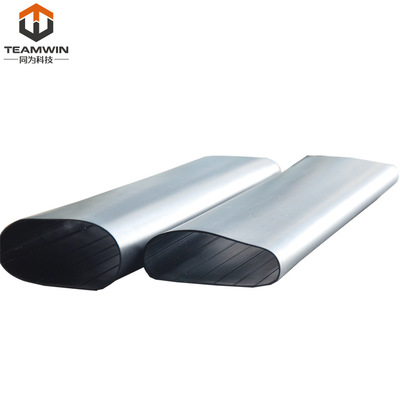

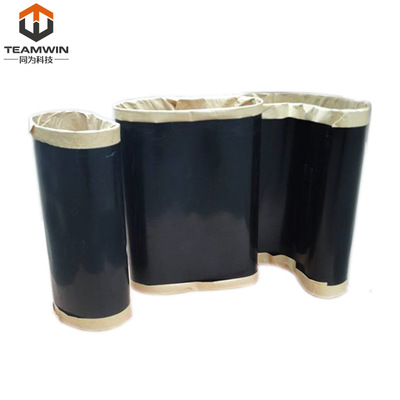

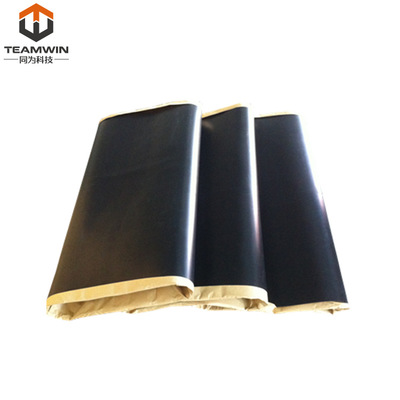

TW-S60 Heat shrinkable wraparound sleeve

Product description:The TS60 is a heat shrinkable tubular sleeve designed for corrosion protection of buried and exposed steel pipelines. It consists of a crosslinked polyolefin backing, coated with a protective heat sensitive adhesive which effectively bonds to steel substrates and common pipeline coatings including polyethylene and fusion bonded epoxy.
Construction: Three-layer system
First layer: Liquid epoxy, solvent-free two-component.
Second layer: High shear strength copolymer adhesive.
Third layer: Thick, fiberglass reinforced, radiation cross-linked polyethylene.
Service hotline: 18118630588

Product parameters

• Ensures correct application of heat & allows easy post-heat inspection. Reliable inspectability at any time.

• Saves installation time.

• Low preheat sensitivity & proven functionality Allows easy application combined with high functional performance.

• Specially formulated sealants Ensures a strong bond & a tight seal.

Provides high peel and shear values after installation.

• No special equipment or skills required Makes installation fast and easy.

Keeps installation costs low.

Application:


Operating Characteristics

Test Method

 Typical Values

Pipeline Operating Temp



70℃

Minimum Installation Temp



75℃

Mainline Coating Compatibility



PE,FBE,PP


Adhesive Properties

Test Method

 Typical Values

Softening Point

ASTM E28

78℃

Lap Shear @ 23°C

ASTM D1002-05

0.8


Backing Properties

Tensile Strength

ASTM D638

18MPa

Elongation

ASTM D638

550%

Hardness

ASTM D2240

50Shore D

Volume Resistivity

ASTM D257

4.0X1015 ohm-cm


Sleeve Properties

Adhesion Strength @ 23°C

GB/T2792-98

160 N/cm

Impact Resistance

GB/T2792-98

Pass

Indentation Resistance

 ASTM D1000

Pass

Cathodic Disbondment @ 70°C, 30 days

ASTM D570

10

Low Temp. Flexibility

ASTM D2671C

 >-30°C


Nominal Size As Supplied

Pipe Size

Pipe OD(mm)

Sleeve

Closure Width(mm)

Backing /
Adhesive thickness(mm)

50 60.0 100 500

≥1.2/0.8

65 73.0 110

500

≥1.2/0.8

80 88.9 120

500

≥1.2/0.8

90 101.6 140

500

≥1.2/0.8

100 114 150

500

≥1.2/0.8

125 141 190

500

≥1.2/0.8

140 159 200

500

≥1.2/0.8

150 168 208

500

≥1.2/0.8

200 219 250

500

≥1.2/0.8

250 273 320

500

≥1.2/0.8

300 325 370

500

≥1.2/0.8

350 355 400

500

≥1.2/0.8

400 406 460

500

≥1.2/0.8

450 457 510

500

≥1.5/0.8

500 508 560

500

≥1.5/0.8

550 558 610

500

≥1.5/0.8

600 610 660

500

≥1.5/0.8

650 660 710

500

≥1.5/0.8

700 711 770

500

≥1.5/0.8

750 762 820

500

≥1.5/0.8

800 812 860

500

≥1.5/0.8

850 863 910

500

≥1.5/0.8

900 914 960

500

≥1.5/0.8

950 965 1020

500

≥1.5/0.8

1000 1016 1060

500

≥1.5/0.8

1020 1066 1110

500

≥1.5/0.8

1100 1117 1170

500

≥1.5/0.8

1150 1168 1210

500

≥1.5/0.8

1200 1219 1270

500

≥1.5/0.8

1250 1270 1320

500

≥1.5/0.8

1300 1320 1380

500

≥1.5/0.8
